Concrete Floor Thickness for Installing a Car Hoist

Crucial Considerations for Installing a Car Hoist in Your Garage

If you’re considering the installation of a car hoist in your garage, it is essential to ensure that your concrete floor meets the required specifications. A robust and stable foundation is not only vital for the effective operation of the hoist but is also critical for safeguarding both your vehicles and anyone using the equipment. Proper preparation and strict adherence to installation guidelines can greatly improve both the performance and the longevity of your hoist, making your investment worthwhile.

Most car hoists require a concrete slab that is at least 100mm (4 inches) thick. This specific measurement is crucial as it allows for the even distribution of weight from both the vehicle and the hoist, significantly reducing the risk of cracking or sinking over time. For more heavy-duty hoists, it is advisable to consider a thicker concrete slab, potentially increasing to 150mm (6 inches), to ensure optimal performance, stability, and safety during operation.

Step-by-Step Guide to Determining the Ideal Concrete Thickness for Your Car Hoist

The thickness of your concrete floor is a fundamental element in the safe installation and operation of a car hoist. It is imperative to consider several factors when assessing the appropriate depth for your slab to ensure it can adequately support the loads it will encounter during use. Understanding these factors can help you avoid costly mistakes while enhancing the overall safety of your garage setup.

Evaluating Load Capacity for Your Car Hoist Installation

Car hoists impose significant stress on the concrete floor beneath them. Therefore, it is essential to understand the total weight your concrete floor must support. This consideration includes not only the weight of the vehicle itself but also the weight of the hoist, which can contribute a considerable load to the floor.

A standard passenger car generally weighs between 1,500 to 2,000 kg, while the hoist may add an additional weight of 500 to 1,000 kg. Moreover, it is wise to include extra weight as a safety buffer to ensure that the structure can handle unexpected circumstances. This thorough assessment will help you maintain a safe garage environment.

For most home garages, a concrete thickness ranging from 100 mm to 150 mm is typically sufficient. However, if you plan to lift substantially heavier vehicles, it may be necessary to consider a thicker slab to guarantee safety and stability during operation.

Consulting with a structural engineer is a prudent decision. They possess the expertise necessary to provide tailored advice and assist you in calculating the precise thickness needed based on your unique circumstances and requirements, ensuring a safe installation.

Recognising Various Car Hoist Types and Their Concrete Thickness Requirements

It is crucial to understand that different types of car hoists have specific requirements regarding concrete thickness. Two-post lifts and four-post lifts are two popular options among homeowners seeking to incorporate a car hoist into their garage. Understanding these distinctions can greatly influence your planning and installation process.

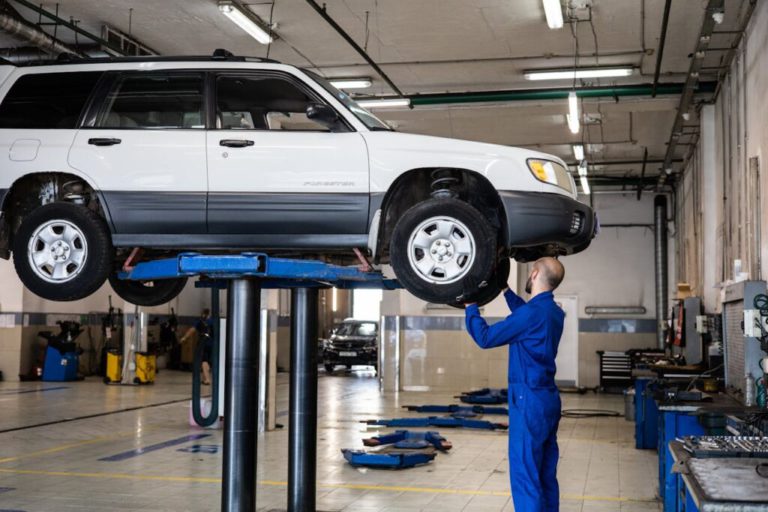

Two-post lifts typically concentrate pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively accommodate the concentrated load. This ensures stability and prevents cracking.

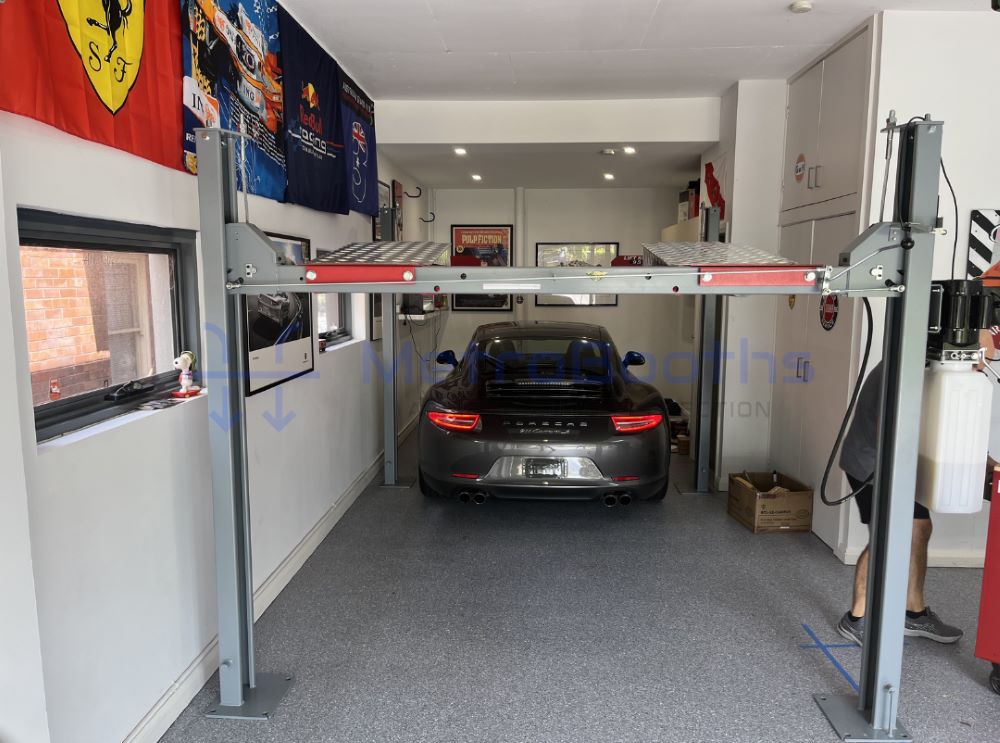

In contrast, four-post lifts distribute weight more evenly across a larger area, allowing them to function effectively with a slightly thinner slab, generally within the range of 100 mm to 125 mm. This knowledge is essential for making informed decisions about your garage setup.

Always consult the manufacturer’s specifications for the hoist you are considering, as they will typically outline the minimum concrete thickness required for safe operation. Adhering to these guidelines is critical for optimal performance and longevity of your hoist.

Remember that these recommendations serve as general guidelines. Your specific needs may vary depending on the configuration of your garage and the types of vehicles you intend to lift, so tailor your approach accordingly.

Grasping the Importance of Concrete Strength and Reinforcement Techniques

The strength of your concrete is just as important as its thickness. Stronger concrete can often be effectively utilised at a thinner depth while still providing adequate support for heavy loads. This is particularly relevant in the context of a car hoist installation, as it impacts safety and performance.

It is advisable to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry experts recommend opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting. This ensures that your installation can withstand the demands placed upon it.

Incorporating reinforcement techniques is essential for significantly enhancing the durability of your concrete. The addition of steel mesh or rebar can greatly improve the overall strength of your concrete floor. Consequently, this could enable you to utilise a thinner slab while still ensuring it can effectively support heavy loads during operation.

For most home garages, SL82 mesh presents a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs, making it an economical choice for budget-conscious homeowners.

If you have concerns about potential cracking, consider integrating fibres into your concrete mix. This inclusion can assist in reducing the formation and propagation of small cracks over time, enhancing the longevity of your installation and maintaining the aesthetic quality of your garage.

Critical Installation Factors for Ensuring Successful Car Hoist Operation

When installing a car hoist, meticulous site preparation and ongoing floor maintenance are of utmost importance. By paying careful attention to concrete specifications and ensuring proper floor care, you can guarantee the safe and prolonged operation of your hoist, ultimately protecting your valuable investment and ensuring peace of mind.

Essential Site Preparation and Concrete Pouring Techniques for Car Hoist Installation

Before the installation of your car hoist, it is imperative to confirm that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is essential to utilise steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Furthermore, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, preventing issues during operation.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, it is highly advisable to consult a professional who can evaluate its condition accurately, ensuring a safe and effective installation.

Essential Ongoing Maintenance Practices After Your Car Hoist Installation

Once your car hoist is installed, it is critical to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could affect the functionality and safety of your hoist.

It is essential to clean up any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues. Additionally, consider using protective mats under the lift arms to minimise wear and tear on the floor, thereby extending its lifespan and maintaining an attractive garage environment.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can prevent costly repairs and ensure safe usage, allowing you to use your hoist with confidence.

Think about applying a sealant to the concrete to protect against stains and moisture. Such measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for your garage.

Common Questions Regarding Car Hoist Installation and Concrete Requirements

Installing a car hoist necessitates careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some frequently asked questions related to the concrete requirements for various types of lifts, providing you with the knowledge needed to make informed decisions.

What is the minimum concrete thickness recommended for a two-post lift installation?

For a two-post lift, the recommended minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer’s specifications, as certain models may require thicker slabs for safe operation, ensuring that your installation complies with all safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, providing you with peace of mind and ensuring a successful installation process.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is highly discouraged. Such thin slabs are likely to crack or fail under the weight, leading to significant safety hazards that could endanger lives and property. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists. For heavy-duty lifts or those intended for commercial applications, it may be necessary to consider an even thicker slab to ensure safety and stability during use, accommodating a wider variety of vehicles.

What weight can a 100mm thick concrete floor support during hoist operations?

A 100mm thick concrete floor is generally capable of supporting the weight of most passenger vehicles and light trucks when utilised with an appropriate hoist. However, the precise weight limit will depend on the specific concrete mix and reinforcement employed. It’s advisable to consult with a structural engineer for detailed load ratings tailored to your specific situation and requirements, ensuring a safe environment for vehicle lifting.

What factors should be considered when calculating concrete thickness for heavy lifting equipment?

When determining the appropriate concrete thickness for heavy lifting equipment, consider the following crucial factors:

1. The weight of the heaviest vehicle you intend to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used in conjunction with the hoist

Seeking professional advice from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximise safety and efficiency, helping you to avoid potential hazards.
