Clay Soil’s Impact on Caboolture Pipes: What You Need to Know

Residents of Caboolture, Morayfield, Upper Caboolture, and the Moreton Bay region who notice wet patches, sinking areas, persistent drainage problems, or cracks in concrete slabs may be worried that reactive clay soil is negatively impacting their underground plumbing systems.

The predominant soil type in Caboolture is reactive clay, which expands upon absorbing moisture and contracts during dry spells, sometimes by 20% or more. This cyclical behaviour exerts considerable pressure on underground pipes when the soil is saturated and leaves them unsupported when it dries out. Older clay sewer systems and galvanized water pipes are particularly vulnerable to damage. Conducting a camera inspection can identify issues early on, while pipe relining can resolve many problems without the need for extensive excavation.

In Caboolture, the condition of your underground plumbing is continuously challenged by the surrounding soil.

Over time, this ongoing pressure can lead to significant damage to the pipes. By the time visible signs appear, the underlying problems may have been developing for quite some time.

How Do the Cycles of Clay Soil Lead to Damage in Underground Pipes?

There are four critical phases that contribute to the deterioration of pipes: wet swelling (compression), dry shrinking (loss of support), ongoing stress from these cycles, and the typical drought-to-flood transitions experienced in Southeast Queensland. Each phase intensifies existing cracks and misaligns pipe joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and expand. This expansion creates crushing pressure on pipes from all sides, forcing joints together or pulling them apart. Rigid pipe materials are especially susceptible to cracking under such extreme pressure.
• The dry phase: Once the rain ceases and the clay dries, it contracts and pulls away from the pipes. This creates voids and gaps, leading to sagging, bending at joints, and the formation of bellies where water and sediment can collect.
• The repeat cycle: This expansion and contraction occur repeatedly throughout the year in Caboolture’s climate. Each cycle heightens stress on the pipes, gradually worsening any existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry and wet seasons. After an extended dry spell, the clay shrinks significantly. When heavy rain arrives, the soil expands rapidly, exerting sudden and extreme pressure on pipes that may be resting in loose, cracked ground.

Which Types of Pipes Are Most Vulnerable to Damage?

Older clay sewer pipes (found in homes built before the 1970s), galvanized steel water mains (in homes constructed before 1985), and concrete stormwater pipes are particularly at risk. While modern PVC pipes generally perform better, inadequate backfill can still lead to joint separation. Copper pipes, although flexible, may develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, especially those in homes built before the 1970s in Caboolture, are among the first to fail. Their brittle and heavy construction, often connected with mortar joints, makes them prone to cracking.
• Galvanized steel pipes: These pipes, used for water supply in homes constructed before 1985, suffer from internal corrosion and are vulnerable to cracking as the surrounding clay soil shifts.
• Concrete stormwater pipes: Although older stormwater systems manage compression relatively well, they often crack at joints during ground movement, allowing roots to intrude through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility, but significant ground movement can still cause joint separation. Poor backfill during installation can increase the vulnerability of PVC pipes.
• Copper pipes: Found in newer homes, copper pipes are more flexible than galvanized steel but can still develop leaks at connection points due to repeated bending stress.

What Are the Signs of Damage in Underground Pipes?

Watch for wet patches during dry spells, sinkholes or soft areas, slow drainage, unpleasant odours in your yard, unusually lush green patches of grass, trees growing roots in specific areas, and cracks in your concrete slab. If you notice two or more of these signs, schedule a camera inspection immediately.

• Wet patches in the yard during dry weather—this may indicate water leaking from a broken pipe, saturating the soil above.
• Sinkholes or soft spots—these form when soil washes into a broken pipe, leaving a void underground.
• Slow drains or persistent blockages—a cracked, shifted, or bellied pipe can trap debris and roots at damaged locations.
• Foul odours in the yard—a cracked sewer pipe may leak sewage into the surrounding soil.

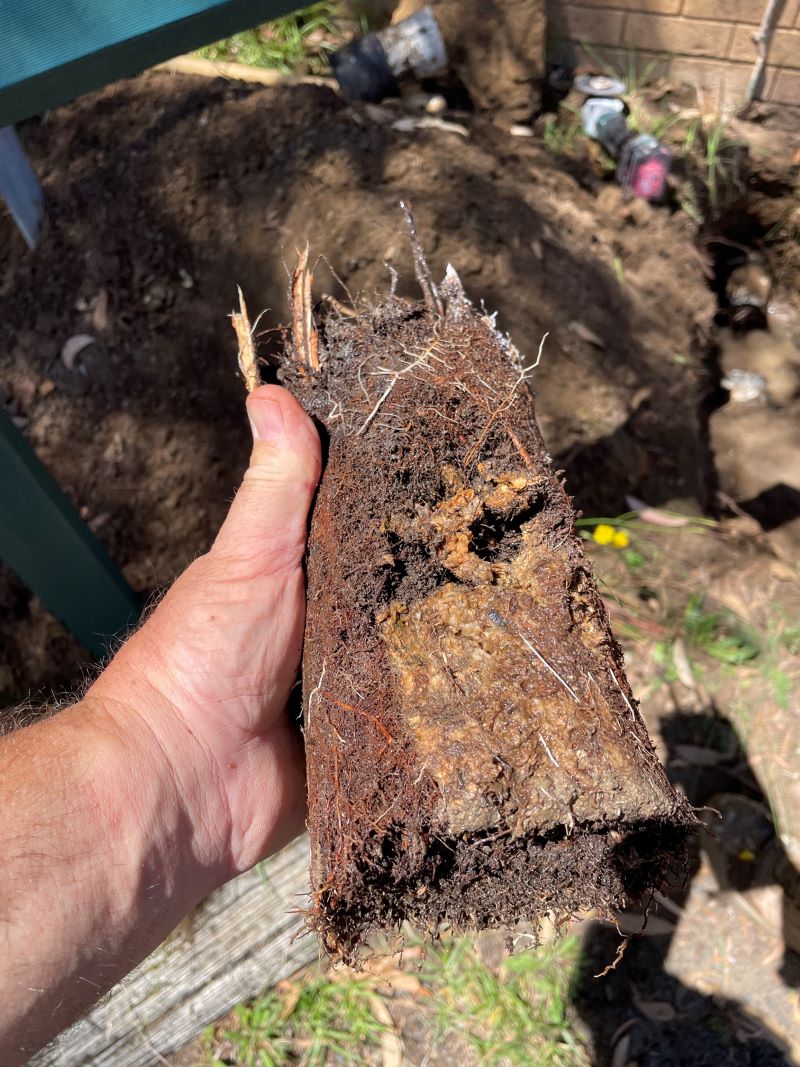

• Tree roots thriving in one area—trees often sense moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home’s foundations.

Our Detailed Approach to Detecting Pipe Damage

We use CCTV drain cameras for sewer and stormwater systems to visually inspect pipe conditions in real time. This enables us to identify cracks, root intrusion, misaligned joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection techniques, alongside a comprehensive property assessment to predict potential future damage.

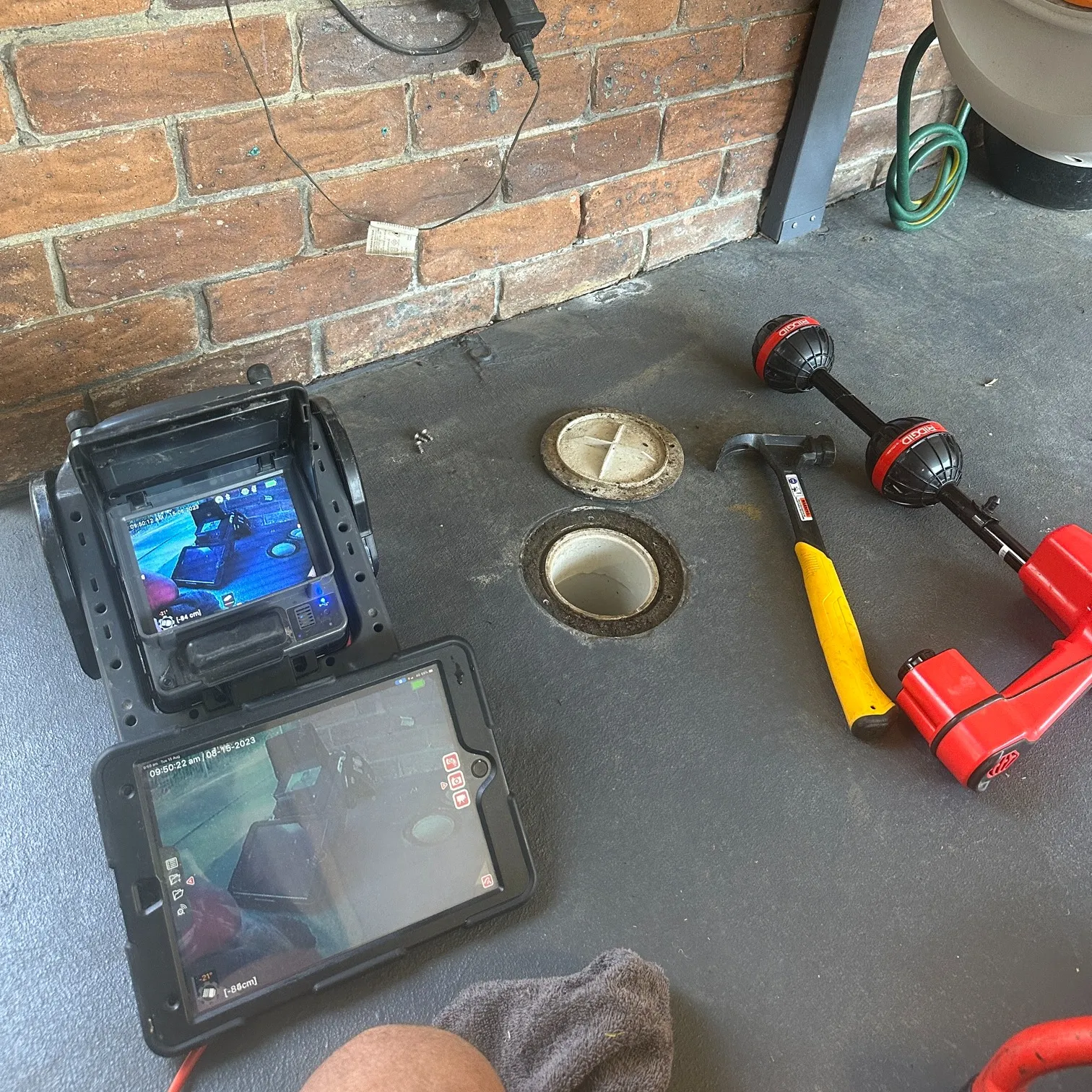

• CCTV drain camera inspection: A camera moves through the pipe, providing a real-time visual assessment. We can identify cracks, breaks, root intrusions, misaligned joints, sediment build-up, and collapsed sections.
• Leak detection: We use advanced acoustic and thermal detection equipment to locate leaks in water supply lines, allowing us to pinpoint issues without the need for excavation.
• Ground assessment: We assess the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to gain insights into the causes of damage and predict where future problems may arise.

What Repair Options Are Available for Pipe Damage?

Hydro jetting is used to clear immediate blockages. For cracked or root-invaded pipes, pipe relining is usually the best solution—requiring no excavation. Installing French drains and spoon drains can help mitigate future ground movement pressures. Full excavation is only necessary in cases of complete pipe collapse.

• Hydro jetting: This method effectively removes roots, sediment, and debris from damaged pipes, restoring proper flow. It often serves as a preliminary step before conducting a camera inspection.
• Pipe relining: This approach is ideal for pipes affected by cracks and root intrusion in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution can last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for fully collapsed pipes when relining is not feasible. We replace the damaged section with new PVC pipes, setting them on sand (rather than clay) to help mitigate future ground movement issues.

Why You Need to Address Pipe Damage Promptly

Damage to underground pipes in clay soil worsens over time. The situation will not stabilise—it will deteriorate. A small crack today could lead to a total pipe collapse tomorrow. Roots that invade gaps will continue to grow, ultimately obstructing the pipe completely.

The most economical repairs are always those made early. A camera inspection reveals the exact conditions underground, enabling you to plan necessary repairs before an urgent situation arises.

You can verify our QBCC license on the QBCC public register before making a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to organise your underground pipe inspection.

Common Questions About Clay Soil and Pipe Damage

How Can I Reduce the Risk of Clay Soil Damaging My Pipes?

While it is impossible to completely prevent damage, you can reduce the risk. Keeping the area around your home consistently watered during dry spells minimises shrinkage cycles. Proper tree management can reduce root pressure on pipes. Installing effective drainage systems also helps decrease soil saturation. Regular monitoring of pipes in reactive clay soil is essential—conducting camera inspections can catch issues early.

What Are the Estimated Costs for Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at approximately $350. Pipe relining for a damaged section typically ranges from $4,000, while complete excavation and replacement for a collapsed pipe can exceed $8,000, depending on factors such as depth, length, and accessibility. We provide precise pricing following a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most cases, yes. A relined pipe has a smooth, jointless interior that facilitates improved flow compared to the original pipe. The resin liner is resistant to root intrusion and corrosion, with a lifespan exceeding 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine if My Property Contains Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to watch for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was built with special footings (deeper and reinforced), the builder likely acknowledged the soil’s reactive nature.

Who Should Not Read This Article?

• If you are located outside the Moreton Bay region—different soil conditions require tailored solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and nearby suburbs.
• If you plan to perform plumbing work yourself—underground sanitary plumbing must be carried out by a licensed plumber in Queensland.
• If you are seeking the cheapest quick fix without an inspection—we prioritise thorough assessments; we will not dig without first conducting a camera inspection.
