Clay Soil’s Threat to Caboolture Pipes Uncovered

If you reside in Caboolture, Morayfield, Upper Caboolture, or the Moreton Bay region and have noticed wet patches, sunken areas, persistent blockages, or cracks in your foundation, it’s crucial to consider whether reactive clay soil is damaging your underground pipes.

The foundation in Caboolture comprises reactive clay, which expands when wet and contracts when dry, sometimes altering its volume by over 20%. This continual change places immense pressure on underground pipes during wet conditions, leaving them vulnerable as the soil dries out. Older clay sewer and galvanised water pipes are especially at risk. Conducting a camera inspection can help identify damage early, and pipe relining frequently offers a solution that avoids the need to excavate your yard.

In Caboolture, your underground pipes are constantly interacting with the surrounding soil.

Over time, this ongoing interaction can lead to significant damage to the pipes. By the time you observe surface signs, the underlying problems may have been developing for an extended period.

How Do the Cycles of Clay Soil Lead to Pipe Damage?

There are four critical phases involved: the wet swelling phase (compression), the dry shrinking phase (loss of support), the continuous stress of these cycles, and the frequent drought-to-flood transitions common in Southeast Queensland. Each cycle exacerbates existing cracks and misaligns joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and expand. This expansion generates crushing pressure on pipes from all angles, which can either compress joints together or pull them apart. Stiff pipe materials are particularly vulnerable to cracking under such severe pressure.
• The dry phase: Once the rain ceases and the clay dries, it shrinks and pulls away from the pipes. This creates voids and gaps, resulting in sagging, bending at joints, and the formation of bellies where water and sediment can accumulate.
• The repeat cycle: This process of expansion and contraction happens repeatedly with changing weather—dozens of times a year in Caboolture’s climate. Each cycle heightens stress on the pipes and gradually enlarges any existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry spells and heavy wet seasons. Following an extended dry phase, the clay shrinks significantly. When heavy rain finally arrives, the soil expands rapidly, exerting sudden, extreme pressure on pipes that may be resting in loose, cracked ground.

Which Types of Pipes Are Most Vulnerable to Damage?

Older clay sewer pipes (from homes built before the 1970s), galvanised steel water mains (from homes built prior to 1985), and concrete stormwater pipes are at the highest risk. Modern PVC pipes generally perform better, but inadequate backfill can still lead to joint separation. Copper pipes, while flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, particularly those from homes constructed before the 1970s in Caboolture, are among the first to fail. Their brittle and heavy nature, along with mortar joints, makes them susceptible to cracking.
• Galvanised steel pipes: These pipes, used for water supply in homes built before 1985, are already compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can withstand compression reasonably well, they often crack at joints during ground movement, allowing roots to penetrate through these openings.
• PVC pipes: Modern PVC pipes are more robust against ground movement due to their flexibility. significant ground movement can still lead to joint separation. Poor backfill during installation can increase the susceptibility of PVC pipes.
• Copper pipes: Found in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repeated bending stress.

What Are the Warning Signs Indicating Damage to Underground Pipes?

Be vigilant for wet patches during dry periods, sinkholes or soft areas, sluggish drainage, unpleasant odours in your yard, unusually lush grass patches, trees rooting heavily in one spot, and cracks in your slab. If you notice two or more of these indicators, schedule a camera inspection promptly.

• Wet patches in the yard during dry weather—this may indicate water leaking from a broken pipe and saturating the soil.
• Sinkholes or soft spots—these occur when soil is washed into a broken pipe, creating an underground void.
• Slow drainage or recurring blockages—a cracked, displaced, or belly-shaped pipe can trap debris and roots at the damaged locations.
• Unpleasant odours in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

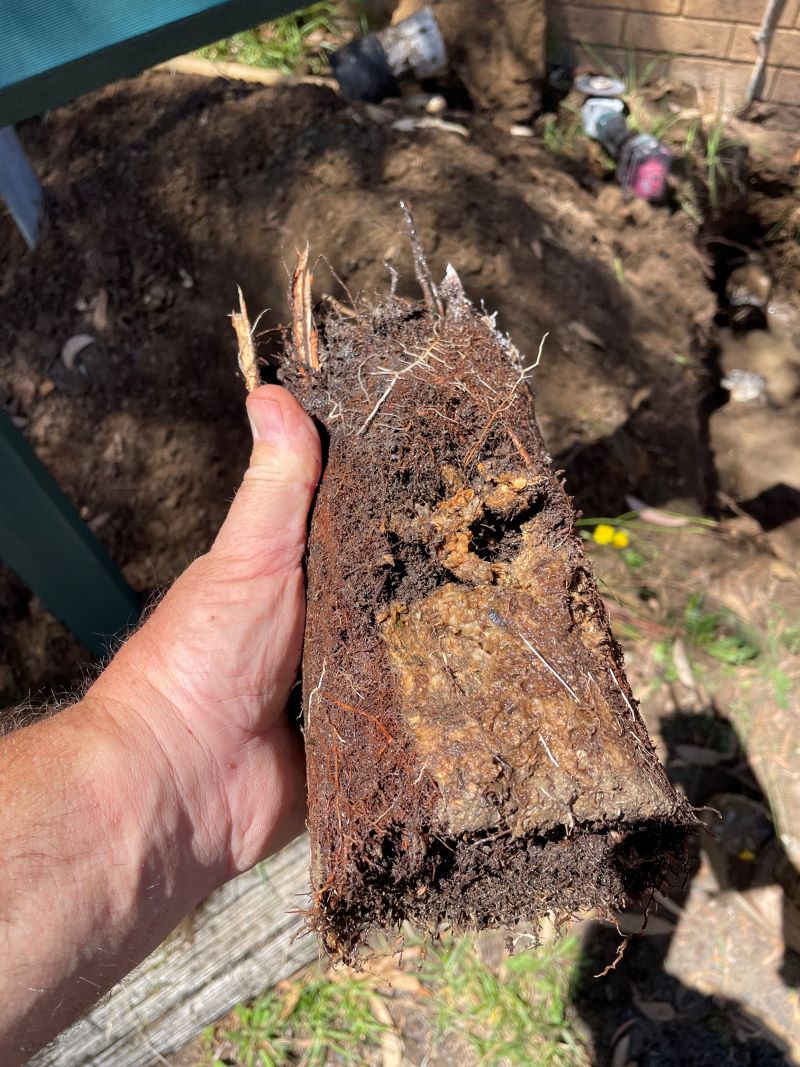

• Tree roots thriving in a specific area—trees often sense moisture and nutrients leaking from damaged pipes, resulting in concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home’s foundations.

How Do We Identify Pipe Damage?

We utilise CCTV drain cameras to visually inspect the condition of sewer and stormwater pipes in real-time, identifying cracks, root intrusions, displaced joints, bellies, and collapses. For water mains, we employ acoustic and thermal leak detection methods, alongside a thorough property assessment to anticipate potential future damage.

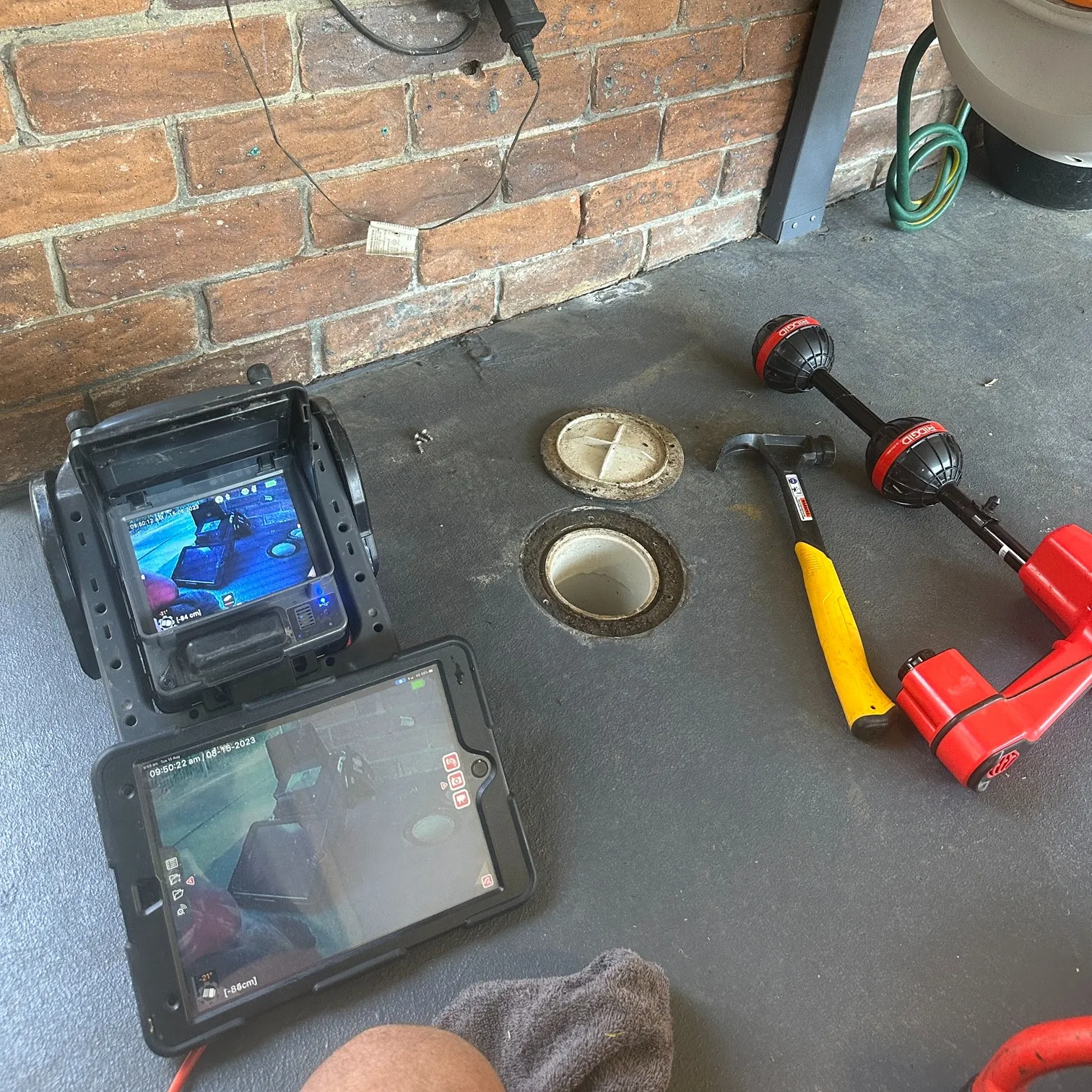

• CCTV drain camera inspection: A camera travels through the pipe, providing a real-time visual inspection of its condition. We can identify cracks, breaks, root intrusions, displaced joints, sediment buildup, and areas that have collapsed.
• Leak detection: To locate leaks in water supply pipes, we use advanced acoustic and thermal detection tools, enabling us to pinpoint issues without excavation.
• Ground assessment: We evaluate the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and predict where future issues may arise.

What Are the Most Effective Solutions for Pipe Damage?

Hydro jetting is employed to clear immediate blockages. For cracked or root-invaded pipes, pipe relining is the most effective solution—this method requires no excavation. Installing French and spoon drains can assist in alleviating future ground movement pressure. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes, restoring proper flow, often serving as a preliminary step before conducting a camera inspection.
• Pipe relining: This method is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, helping to reduce the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil around underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is not practical. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to mitigate future issues caused by ground movement.

Why It’s Crucial to Act Before a Collapse Occurs

Damage to underground pipes in clay soil deteriorates over time. The situation does not stabilise; it worsens. A small crack today could lead to total pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, eventually blocking the pipe entirely.

The most cost-effective repairs are those undertaken early. A camera inspection reveals the exact conditions underground, enabling you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to arrange your underground pipe inspection.

Common Questions About Clay Soil and Pipe Damage

How Can I Reduce the Risk of Clay Soil Damaging My Pipes?

While you can lessen the risk of damage, complete prevention is not achievable. Regularly watering the area around your home during dry spells can help minimise the shrinkage cycle. Effective tree management can reduce root pressure on pipes. Proper drainage systems also assist in decreasing soil saturation. Regular monitoring of pipes in reactive clay soil is essential—camera inspections can identify issues early.

What Are the Repair Costs for Pipes Damaged by Clay Soil?

Repair costs vary depending on the extent of the damage and the selected method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe can exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing a New Pipe?

In most cases, yes. A relined pipe features a smooth, jointless interior that actually facilitates better flow than the original pipe. The resin liner is resistant to root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Has Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area are situated on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was built with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Consider Skipping This Article?

• If you are located outside the Moreton Bay region—different soil conditions require different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you plan to DIY the plumbing work—underground sanitary plumbing must be conducted by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t begin excavation without first conducting a camera inspection.
