Ducted and Split Air Conditioning Installation in Tarragindi

Precision Electrical & Air has successfully completed a comprehensive air conditioning installation at a residential property in Tarragindi, featuring two separate systems. This project involved the installation of a Daikin ducted air conditioning system for the upper level and a Daikin high-wall split system in the living room on the lower level.

Professional Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

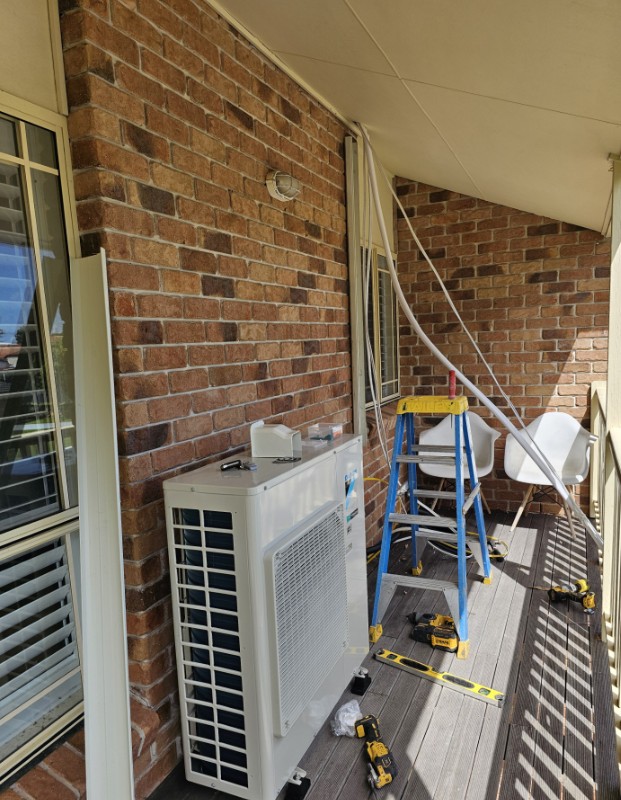

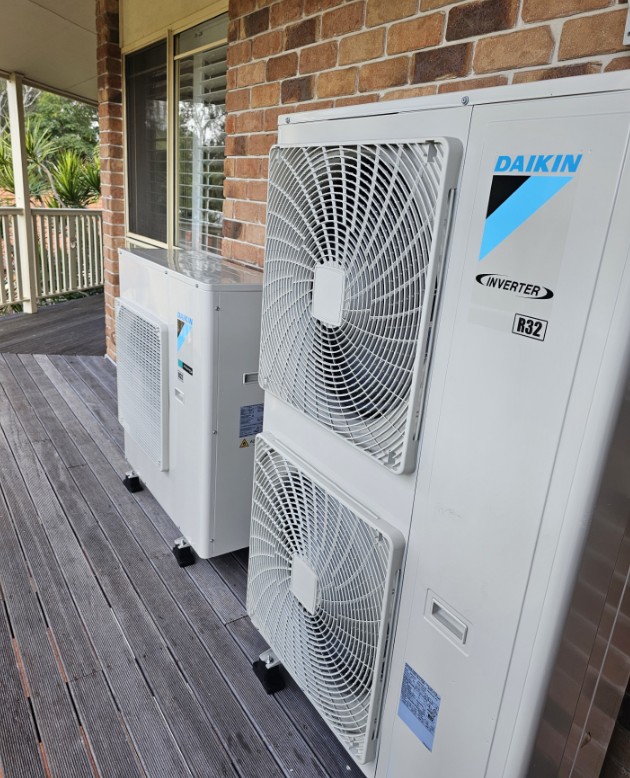

The team at Precision Electrical & Air expertly managed the installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically placed within the ceiling space, while the condenser was securely installed on the front balcony wall, utilising rubber feet to minimise vibrations. Ducting efficiently enclosed the connection between the indoor and outdoor units as it exited the ceiling space.

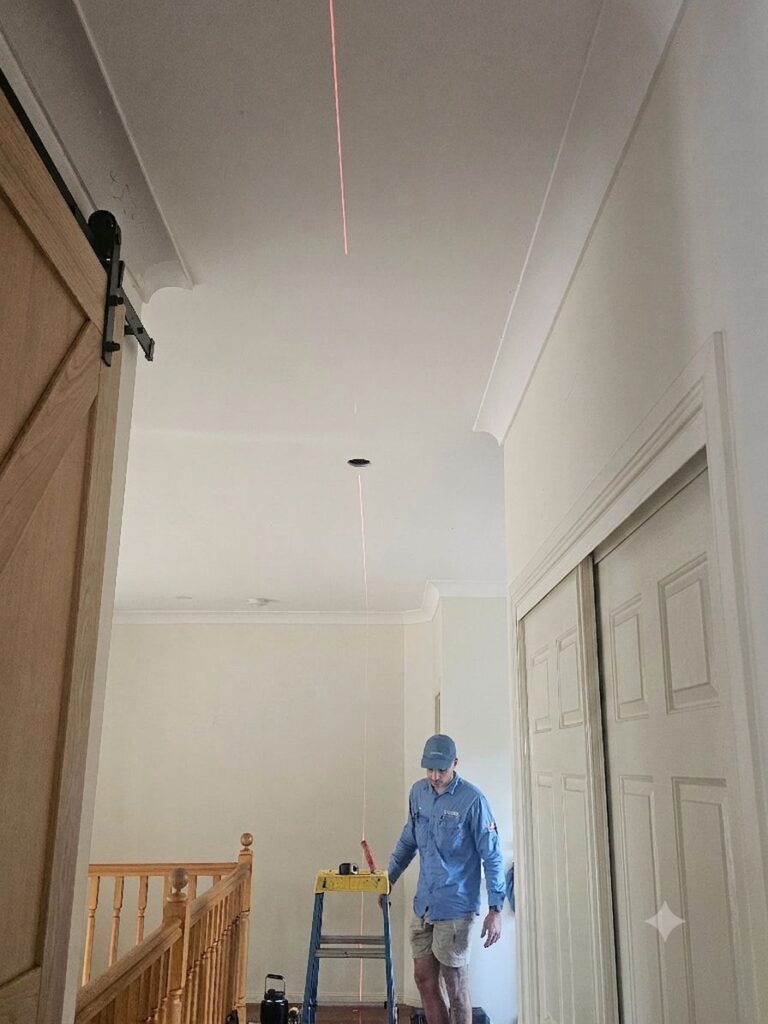

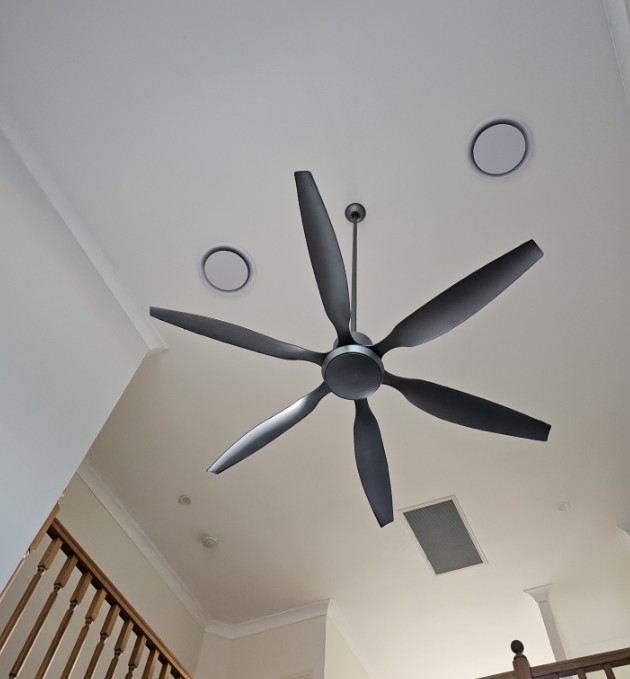

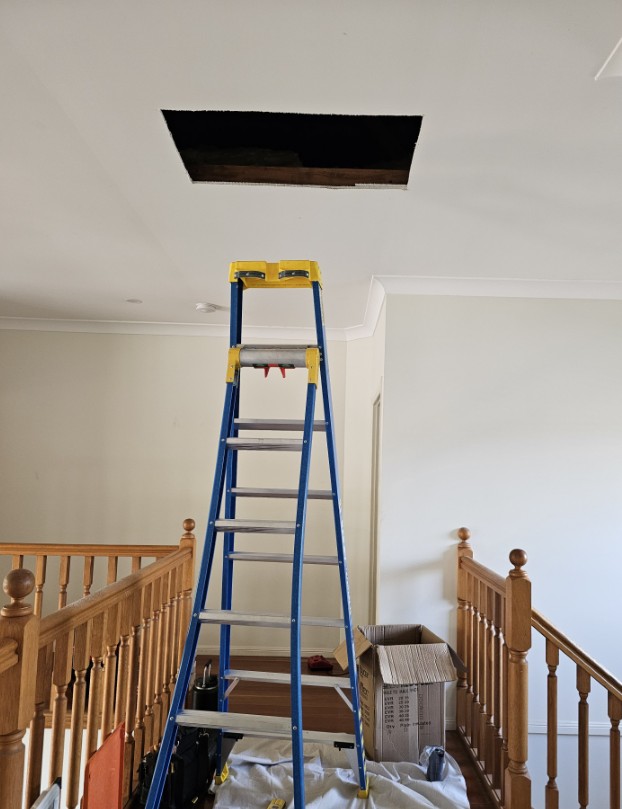

To ensure effective drainage, two drainage systems were established, directing water from the indoor unit and its safety tray to the external gutter. The installation included comprehensive ducting, branch take-offs, zone motors, and air plenums throughout the ceiling space, all linking back to the indoor unit. A return air grille was thoughtfully located in the upstairs hallway, promoting optimal air circulation and system efficiency.

A dedicated electrical sub circuit was created, running from the switchboard to the outdoor unit, and featured an NHP isolation switch positioned adjacent to the condenser. A MyZone Multipoint touchpad zone controller was installed in the upstairs hallway, giving residents enhanced control over their air conditioning system and its zones.

Seamless Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

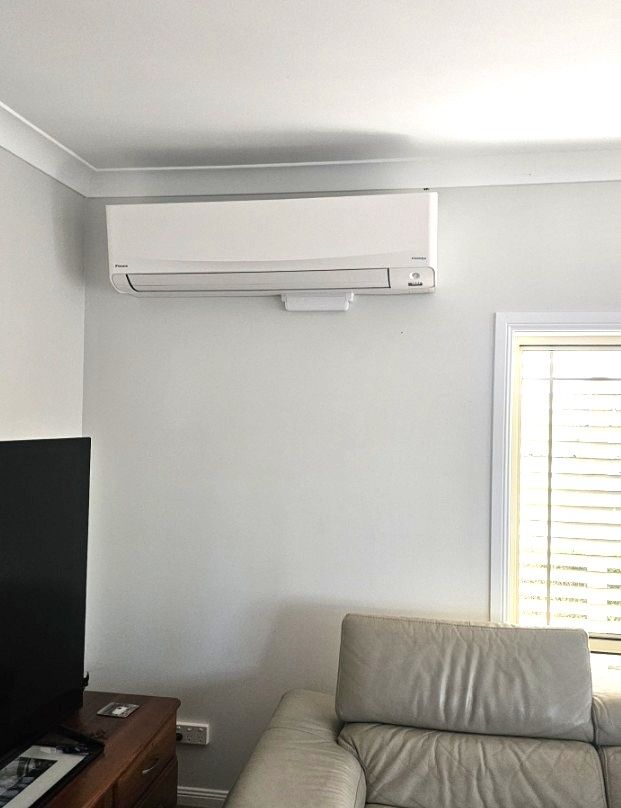

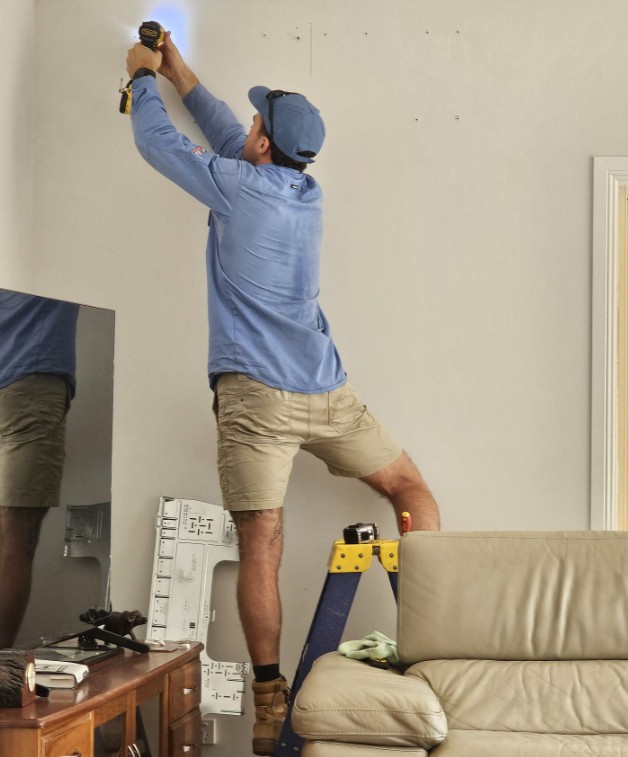

In the downstairs living room, the installation of the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was successfully carried out. This process included fitting new ducting, interconnect cables, and copper pair coil essential for linking the indoor and outdoor units, with the condenser mounted on rubber feet to further minimise vibrations.

A dedicated electrical circuit was established from the switchboard to the condenser, complete with an NHP isolation switch for enhanced safety. To effectively manage condensation, an Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe. The entire system underwent rigorous commissioning to ensure optimal performance.

Summary of Installation Results

This installation provides the property with efficient zoned ducted heating and cooling for the upper level, along with a dedicated high-wall split system for the downstairs living area. Both Daikin systems were installed according to strict manufacturer specifications, ensuring that all electrical circuits and drainage systems were correctly configured and fully operational.
