Flat Metal Roof Leaking Problems Explained

Recognising and Addressing Common Issues with Flat Roofs in Central Coast Residences

Although flat roofs do not dominate Australia’s roofing market, their appeal is growing steadily among both residential and commercial properties. These roofs are frequently found on patios, carports, walkways, and locations where low-pitch roofing is essential. Due to their minimal incline, flat roofs may also be referred to as “skillion roofs.”

While flat roofs offer numerous benefits, they also present unique challenges that homeowners need to recognise. A thorough understanding of the common issues associated with flat roofing systems and implementing proactive strategies to mitigate them is crucial, particularly on the Central Coast. The coastal climate, along with heavy rainfall and salt-laden air, exacerbates roofing problems, making it imperative to stay informed about potential challenges.

What Are the Driving Reasons Behind the Increased Popularity of Flat Roofs Among Homeowners?

Flat roofs are gaining traction in both residential and commercial construction due to several compelling factors:

• Their quick and straightforward installation process enables faster project completion times
• Easier access for maintenance makes routine checks and repairs more manageable
• They offer an ideal surface for solar panel installations, enhancing energy efficiency

A major concern surrounding flat roofs is the effective management of water drainage. Water is the enemy of your roof. When designing a new roof or updating an existing structure, several critical factors must be considered, particularly rainfall, which varies significantly across Australia’s diverse regions.

What Are the Major Drainage Challenges Associated with Flat Roofs?

Unlike pitched roofs, which allow rainwater to quickly run off into gutters, flat roofs have a limited slope. This design can lead to water pooling that persists for extended periods. If water is not efficiently removed from the roof, it may result in:

• Surface stains and degradation of roofing materials
• Long-term structural weakening of roofing components
• Accumulation of mould and mildew, posing health hazards
• Leaks that can permeate the interior of the building

The solution to these challenges lies in effective roof plumbing and thoughtful design that addresses the specific concerns of flat roofs while ensuring proper water management.

How to Enhance Flat Roof Designs for Optimal Drainage Performance

Prior to installation, a qualified roofing contractor will evaluate several essential factors that influence drainage efficiency:

• Local rainfall intensity and typical weather patterns
• The total roof area and accurate dimensions
• Gutter configurations and effective drainage outlets
• Specifications for downpipe dimensions
• Options for overflow prevention to manage excess water
• Considerations about roof pitch to improve drainage

Most roofing manufacturers recommend a minimum slope of 5° for low-pitch roofs. Roofs with less than this slope may compromise waterproofing efforts and potentially void product warranties, leading to expensive repairs.

Standard corrugated roofing sheets, while suitable for pitched roofs, do not work for very low-pitch applications. For flat roofs, specially designed roofing profiles engineered for effective water shedding are strongly advised to guarantee long-term performance.

Examining the Top Metal Roofing Profiles for Low-Pitch and Flat Roofing Applications

Two of the most recommended roofing profiles for low-pitch and flat roofs include:

Trimdek: This versatile profile is suitable for applications on both roofs and walls. Its 28mm rib height and specially designed capillary groove enhance water tightness, even at a minimal pitch of 2°.

Kliplok: This innovative clipped roofing profile employs hidden clips rather than screws to secure sheets. This design effectively prevents water ingress through screw penetrations, making it an excellent choice for low-pitch installations.

Choosing the appropriate roofing profile according to your roof pitch and local rainfall conditions is crucial for ensuring the durable performance and reliability of your roofing system.

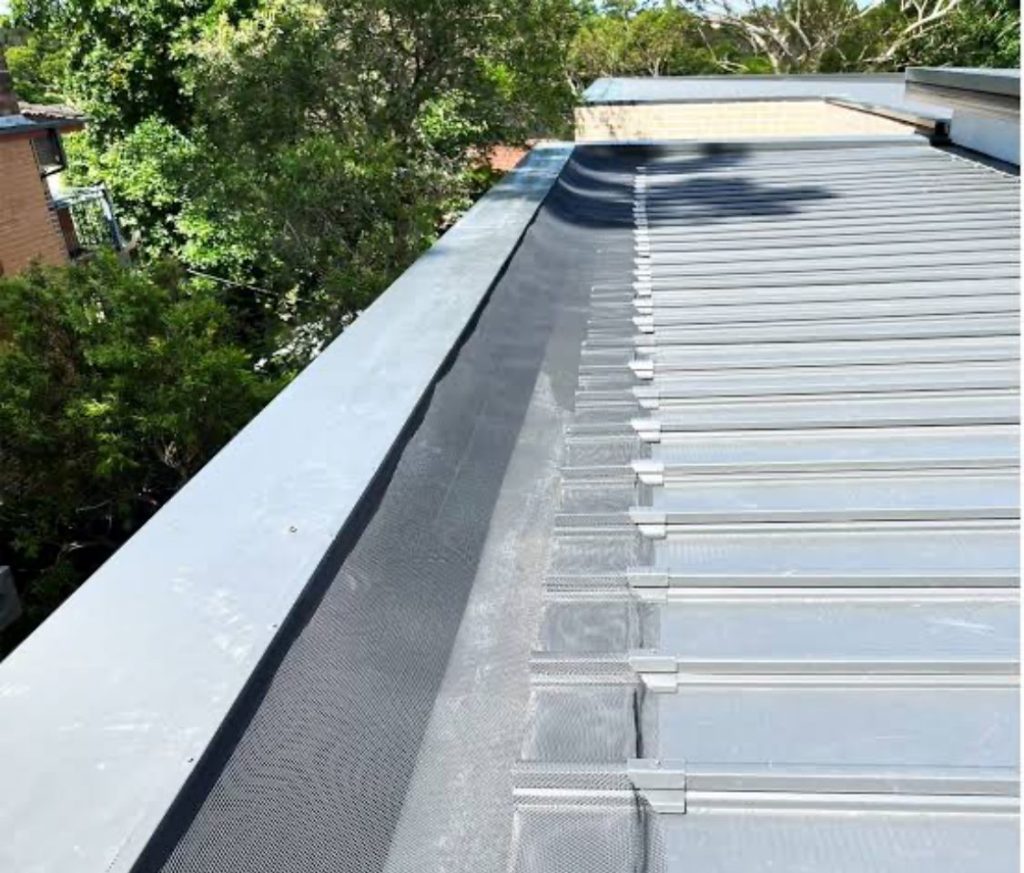

How to Efficiently Manage Box Gutters and Drainage on Flat Roofs

On flat roofs, box gutters are typically used to connect roof panels to drainage outlets. Since box gutters are situated below the roof plane, they require careful detailing and installation to prevent blockages and water back-up problems.

Common challenges associated with box gutters include:

• Debris accumulation from nearby trees and foliage
• Improper fall or slope that hinders effective water flow
• Overflowing back into the roof structure, which can lead to leaks
• Blocked downpipes that hinder proper drainage

Addressing these challenges begins with thoughtful gutter design and a commitment to consistent maintenance to ensure optimal functionality.

What Factors Should You Consider When Choosing Guttering for Your Flat Roof?

Standard gutters may not be adequate for managing the water flow demands of flat roofs. It is often essential to install guttering designed for larger water capacities. Below, we will explore various drainage and overflow options that can be seamlessly integrated into your flat metal roof design.

• Facilitate quicker water removal during heavy rainfall
• Effectively sweep debris away with robust flow capabilities
• Provide easier cleaning and maintenance solutions for homeowners

We highly recommend self-cleaning gutter designs, as they are ideal for flat metal roofs while also offering an attractive appearance!

We advocate for a half-round gutter due to its superior water-carrying capacity, enabling faster drainage. This design effectively sweeps away silt and sludge accumulation with each rainfall, ensuring a cleaner system over time.

For optimal performance on flat roofs, gutters should be appropriately sized based on local rainfall patterns and connected to suitably sized downpipes (for example, 100mm × 75mm) that can efficiently handle substantial water volumes. In areas with abundant trees, installing leaf diverters or guards can significantly reduce blockage issues.

How Do Flashings Prevent Water Entry at Roof Joints?

Flashings are vital components installed at joints where roof sheets meet walls or other surfaces, such as around skylights, chimneys, and at internal corners. On flat roofs, proper flashing installation is essential, as water can collect around these joints if they are not sealed effectively.

To efficiently prevent water ingress:

• Flashings must be precisely shaped to fit the roof profiles
• Waterproof sealants should be applied at all joints to ensure tight seals
• Extra care is necessary at corners and seams where water may accumulate

By ensuring that flashings and sealants are installed correctly, you can achieve a water-tight roof, even during heavy rainfall. Our team takes extra precautions during installation and uses high-quality waterproof sealant to prevent water pooling in these vulnerable areas.

Why Is Regular Maintenance Essential for Extending the Lifespan of Flat Roofs?

Flat roof systems, particularly those connected to box gutters, require routine inspections and maintenance to ensure their effective operation. This includes:

• Clearing debris from gutters and box gutters to maintain clear drainage
• Inspecting downpipes for potential blockages
• Checking roof surfaces for small cracks or areas where water may pool
• Re-sealing flashings as necessary to uphold waterproof integrity

Conducting regular maintenance checks can help avert the need for extensive repairs in the future, thereby prolonging the life of your roofing system.

Uncover the Advantages of Properly Installed Flat Roofs

When designed and installed by skilled metal roofing professionals, flat roofs provide:

• A contemporary, sleek architectural aesthetic that enhances property value
• Optimised space for patios, decks, or utility services, maximising utility
• Convenient access for maintenance or solar panel installation, simplifying upkeep

Furthermore, flat roofs can seamlessly blend with existing pitched roof structures when drainage and detailing are properly managed, enhancing the overall functionality and appearance of the building.

What Steps Should You Take to Ensure the Right Flat Roof Installation on the Central Coast?

A well-designed and expertly installed flat metal roof can deliver both functionality and long-lasting durability in the coastal environment. Whether you are embarking on a new construction project, extending a patio, or adding a carport, selecting the right roofing system and drainage design is vital for achieving optimal performance and durability.

Contact AWS Roofing today to request a quote and secure your installation date. With another wet summer approaching, now is the ideal time to address any roofing issues and prevent more significant problems in the future.

Flat Roof Frequently Asked Questions: Do Flat Roofs Face More Issues Compared to Pitched Roofs?

Flat roofs can indeed encounter more drainage challenges if not designed correctly. Without sufficient slope, water may pool or leak into the building structure. However, when built with the proper pitch, roofing profile, box gutter design, and flashing techniques, flat roofs can be just as resilient as pitched roofs.

What Is the Ideal Roof Pitch for a Flat or Low-Slope Roof?

Most roofing manufacturers recommend a minimum pitch of 5 degrees for metal flat roofs. Profiles like Trimdek and Kliplok can function effectively at pitches as low as 2 degrees when installed correctly and sealed against water. Anything below 5 degrees requires careful selection of materials and detailed guttering strategies to ensure proper drainage.

Is It Possible to Install Solar Panels on a Flat Metal Roof?

Absolutely, flat metal roofs are well-suited for solar panel installations. The accessible surface simplifies the installation process and enhances safety. Typically, panels are tilted on angled mounts to optimise sun exposure and prevent water pooling underneath, ensuring efficiency in energy production.

What Are Box Gutters and Why Are They Used on Flat Roofs?

Box gutters are internal gutters situated below the roof line, often found between roof sections or along parapet walls. They are commonly employed on flat roofs to effectively manage runoff, but they must be carefully sized and sloped to avoid blockages and overflow issues that could compromise the roof’s integrity.

Do Flat Roofs Require Special Gutters or Downpipes?

Yes, flat roofs typically need higher-capacity gutters and larger downpipes to facilitate effective water drainage. Half-round gutters and 100x75mm downpipes are frequently used to enhance flow and prevent water accumulation. Additionally, overflow devices and leaf diverters may be beneficial in reducing maintenance needs.

What Is the Expected Lifespan of a Flat Metal Roof?

When installed correctly, equipped with proper drainage, and maintained regularly, a flat Colorbond or Zincalume metal roof can last between 20 to 30 years or even longer. Keeping box gutters clear and resealing flashings as required will significantly extend the roof’s lifespan and overall performance.
