Solar Switchboard Upgrade for Chelmer’s Battery & Air Con

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade accommodating a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—no three-phase upgrade was required.

Why Choose Precision Electrical & Air for Your Switchboard Upgrade Project?

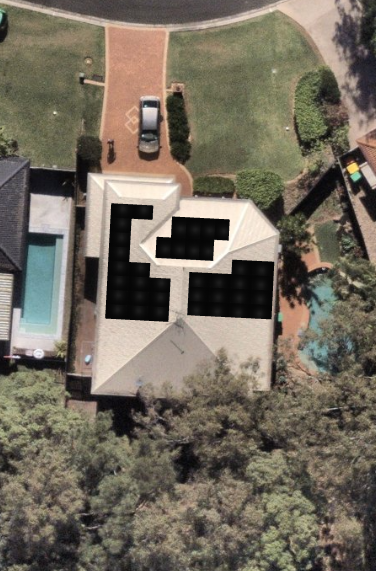

This homeowner in Chelmer undertook an extensive renovation project, incorporating the installation of a robust 17.86kW single-phase solar photovoltaic (PV) system, a high-capacity 30kWh modular battery storage solution, and comprehensive blackout protection for the household. Additionally, a state-of-the-art ducted air conditioning system was included to enhance comfort. Prior to connecting these advanced systems, it was crucial to thoroughly assess and upgrade the existing switchboard to ensure it met current compliance standards and could efficiently manage the increased electrical loads that these installations would generate.

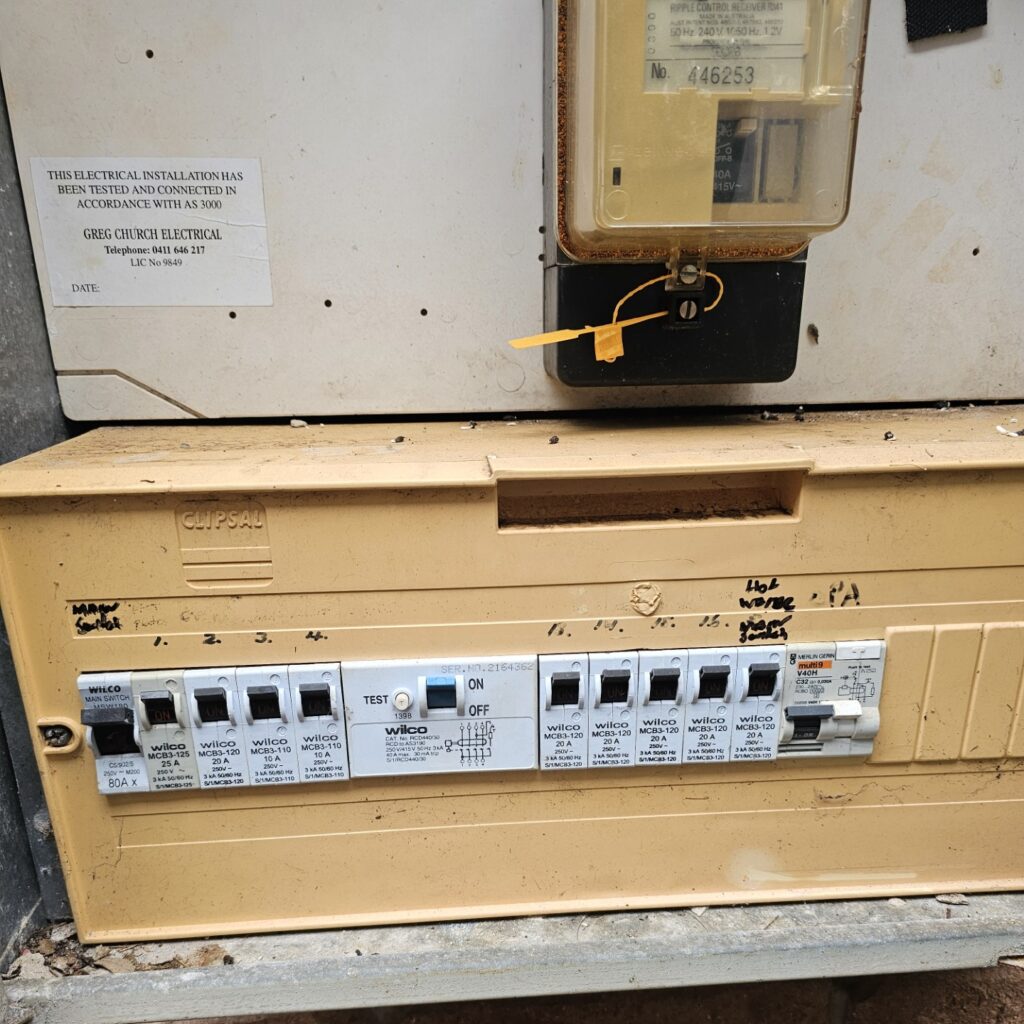

The original switchboard had become outdated, featuring obsolete circuit breakers, a single Residual Current Device (RCD) that offered protection for the entire property, and was not equipped to integrate solar energy and battery storage effectively. Furthermore, the circuit labeling was inadequate, making it non-compliant with modern standards that govern contemporary energy generation systems. This lack of compliance posed significant risks to the efficient operation of the upgraded systems, necessitating a comprehensive overhaul of the switchboard.

Is a Three-Phase Upgrade Necessary for Your Solar System?

When considering the specifications of a 17.86kW solar system paired with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is essential. This common misconception can lead to unexpected costs for the homeowner, potentially ranging between $3,500 and $6,000, coupled with an extended waiting period for approval from Energex for any necessary network modifications.

Thorough Initial Technical Assessment to Determine Upgrade Needs

Two pivotal factors significantly influenced the decision on whether a three-phase upgrade was required. Firstly, the supply cable for the residence was strategically located near the street junction, enabling the voltage rise calculation for solar energy export to comfortably remain within Energex’s single-phase limit of 2%. Secondly, since both the solar and battery systems are engineered to reduce demand on the grid rather than increase it, the network provider found no technical justification for necessitating a three-phase upgrade. Furthermore, the ducted air conditioning system also complied with the necessary parameters for efficient single-phase operation.

Consequently, the decision was made to retain the existing single-phase configuration. The switchboard was upgraded to ensure it could safely and competently accommodate all new electrical loads without compromising safety or compliance with regulatory standards.

Comprehensive Analysis of Installed Components for Maximum Safety

The existing switchboard was entirely dismantled and underwent a meticulous reconfiguration process. Each circuit breaker was replaced with new, correctly rated units sourced from Eaton, and each was carefully labeled for easy identification. The circuits were deliberately separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to improve safety and compliance with current regulations.

A timer was incorporated into the hot water service to ensure it operates effectively during peak solar generation hours. This strategic addition helps to minimize grid dependence by optimising the use of the solar system’s output throughout the day. Furthermore, a dedicated Hot Water Service (HWS) contactor circuit was installed to ensure reliable functionality.

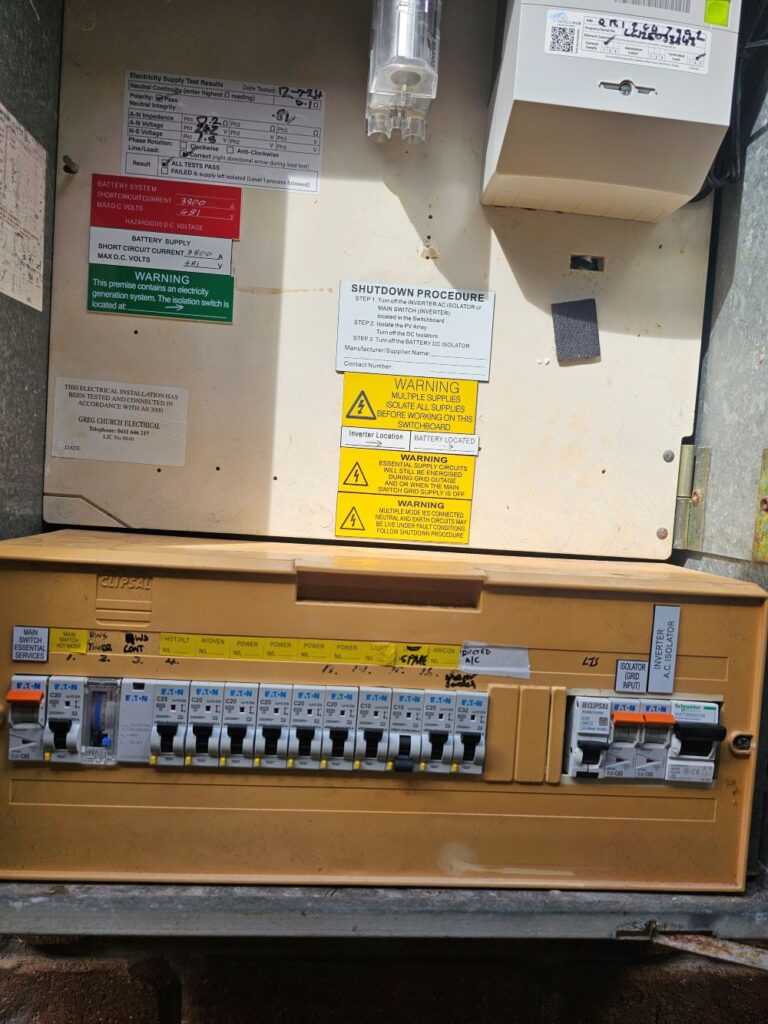

The upgraded switchboard was designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labeling that clearly indicated the battery system rating at 481V DC with a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted successfully and documented for the switchboard.

The finished switchboard now fully complies with the most recent Australian standards, ensuring it is appropriately configured for any future electrical service work that may be required at the property.

Homeowner Enjoys Advantages from Successful Switchboard Upgrade

The homeowner has successfully secured a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all operating efficiently within a single-phase setup. Most importantly, they have avoided unnecessary expenses associated with a three-phase upgrade that was not needed for their particular circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are Unsure About Its Necessity?

While three-phase upgrades can be vital in specific scenarios, they are not universally required for all installations. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your situation, allow Precision Electrical & Air to conduct a comprehensive analysis. We will provide you with a precise assessment based on your cable distance, load requirements, and the actual criteria that Energex will apply to approve your property.

We guarantee no upselling; you will receive an accurate answer tailored to the specific needs of your home.

Your Frequently Asked Questions Addressed About Switchboard Upgrades

How do electricians assess the need for three-phase power for solar systems?

The evaluation process hinges on two primary factors: voltage rise and load demand. Electricians carefully assess the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex allows a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system’s export remains within this limit, a single-phase configuration is deemed sufficient. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to evenly distribute the export load across three conductors, effectively maintaining the voltage rise within acceptable limits.

Does having a larger solar system automatically necessitate three-phase power?

No, the size of the solar system alone does not determine the need for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations yield favourable outcomes and no additional high-demand loads are introduced to the property. The critical considerations include the cable length to the street junction, the existing load profile of the home, and the technical requirements from the network distributor—not solely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, leading to a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors such as Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system’s performance stays within this limit to determine if single-phase or three-phase power configurations are appropriate for your property.
